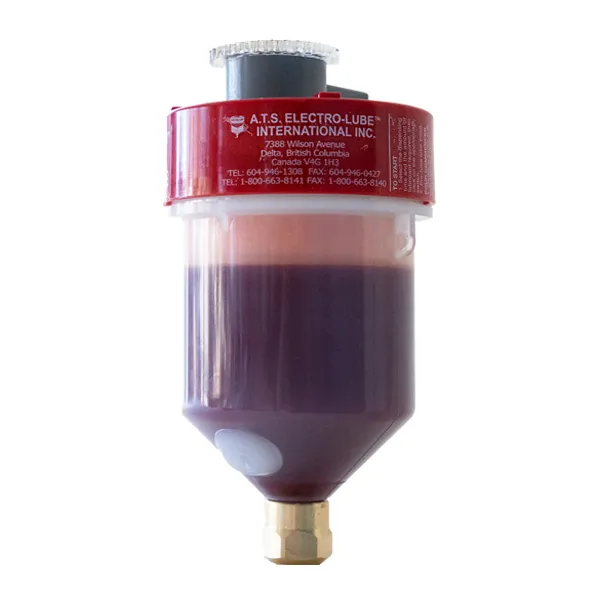

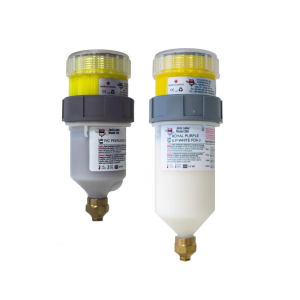

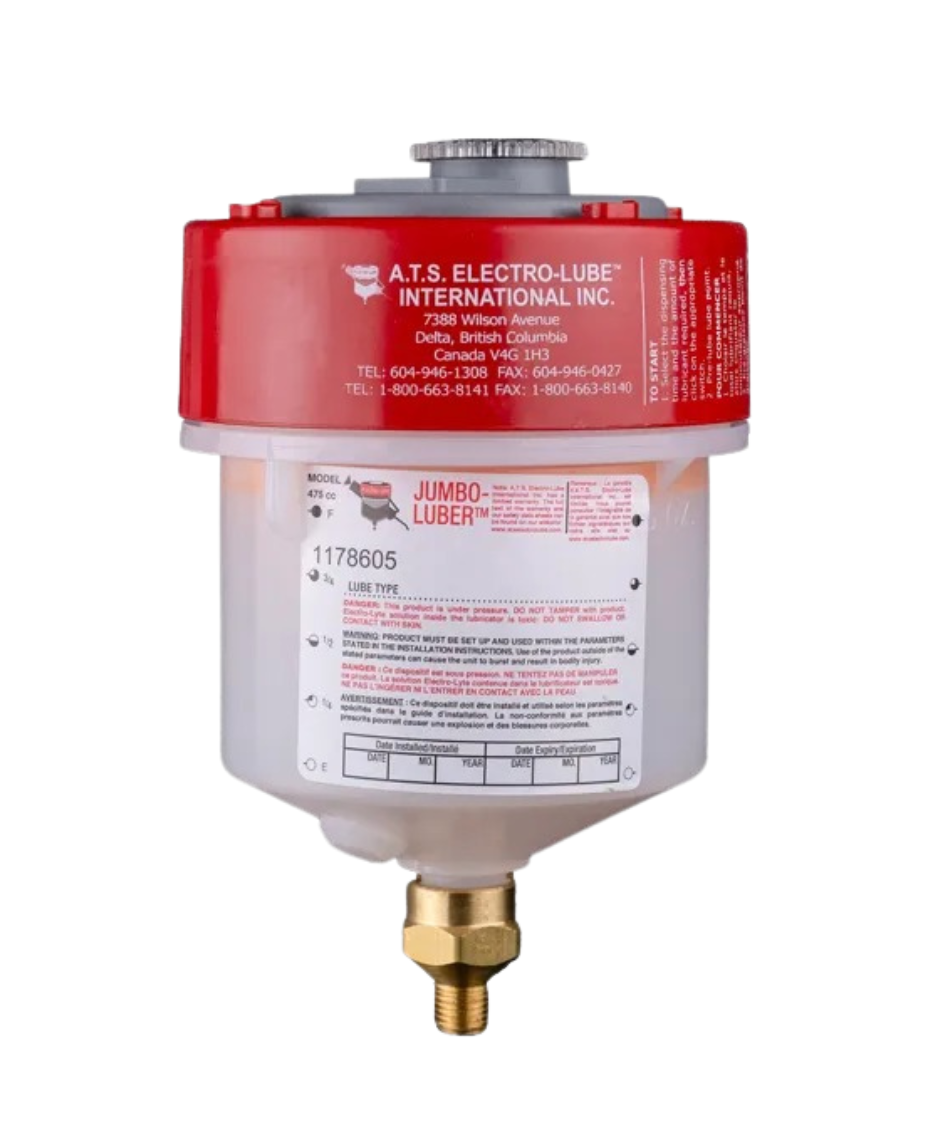

The Electro-Luber™ Series can be filled with any lubricant and used in practically all working environments. These lubricators are intrinsically safe and approved for all explosive areas. They are also MSHA certified for use in mines. They can be filled with food-grade lubricant and will operate underwater down to 30′ (10 m) deep! Our units are simple to use, effective, and drastically reduce the risk of bearing failure by ensuring your machines are continuously lubricated with the correct amount of lubricant at the right time.”
How It Works
The Electro-Luber™ Series are single-point automatic lubricators that utilize an electrochemical reactor cell that converts electrical energy into safe, inert nitrogen gas. The gas is contained in a hermetically sealed, bellows-type gas chamber. As the gas is produced, internal pressure builds up in the bellows and is applied against the orange piston. The piston then forces the lubricant out of the cylinder and into the lubrication point.
These units can empty within 15 days up to one year, depending on the setting of the simple, user-programmable DIP switch. This selection can be changed or deactivated at any time.
Specifications and Features
Single point
The most reliable unit on the market
Up to 50 psi
Temperature range from -40° C to 55° C
Water resistant up to 30 ft (10 m)
Remote mounting and remote control options
ATEX/UL certification (all explosive zones)
Use with ANY lubricant

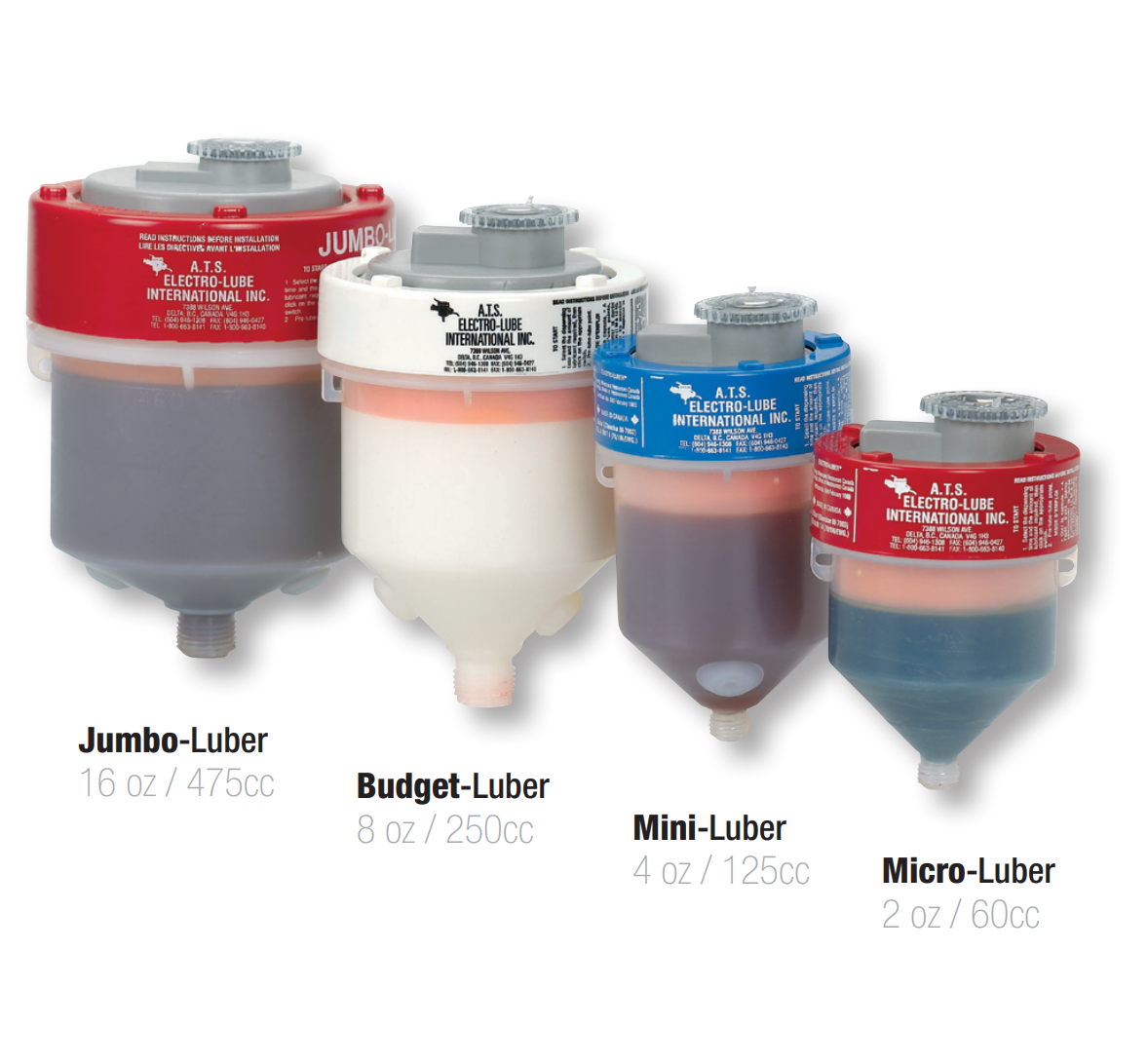

Available in 60, 125, 250, or 475 cc
Recovery rate below 0.001%
Inert and corrosion-resistant
Single-use disposable unit (non-refillable)
