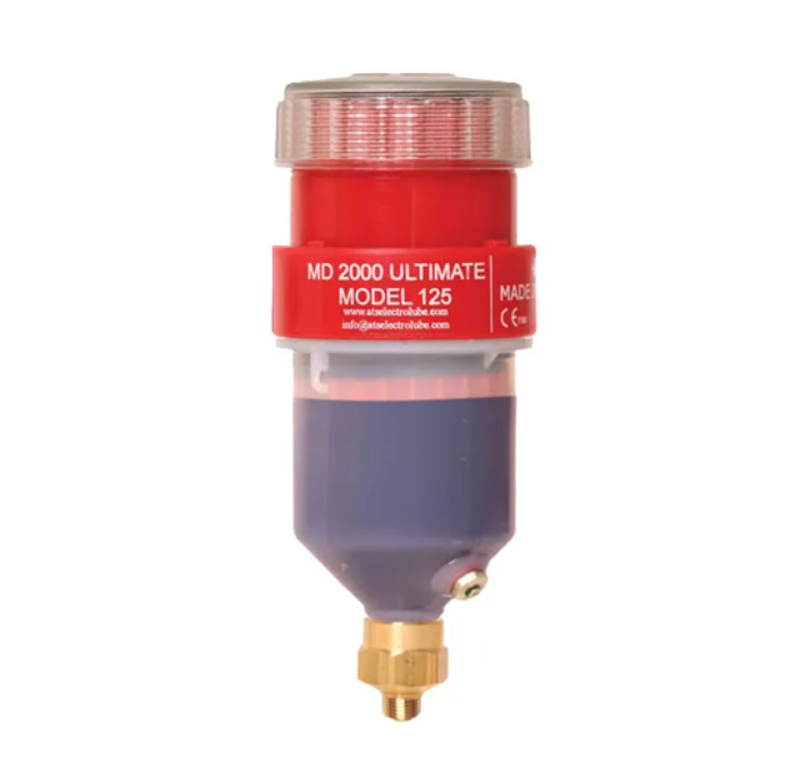

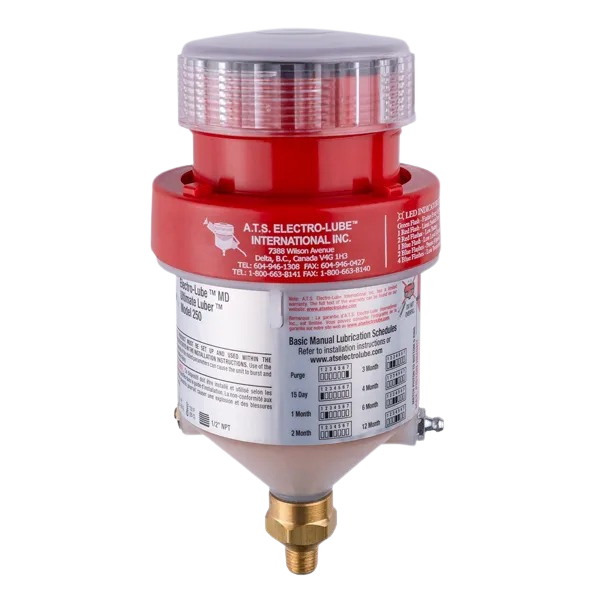

The ULTIMATE-LUBER™ is a high-performance automatic lubrication system, designed to deliver precise, consistent, and reliable dosing in demanding industrial applications.
Thanks to its robust design and motor-driven operation, it enables lubrication across multiple points and transports lubricant through long lines to progressive distributors. Its programmable system activates dosing at defined intervals, ensuring efficient lubrication without constant supervision.
Each cycle dispenses approximately 1.25 cc of grease, maintaining a uniform supply unaffected by temperature or altitude.
Features & Specifications
- Pressure above 1000 psi for demanding applications
- Reach:
- Up to 9 m (30 ft) at a single point
- Up to 6 m (20 ft) in multi-point applications
- Capacity for up to 12 lubrication points (with progressive divider)
- Programmable automatic dosing from 15 days to 2 years
- Approximate discharge of 1.25 cc per cycle
- Rechargeable with a standard grease gun (no tools required)
- Available with replaceable batteries or external power (AC/DC)
- Optional remote control (PLC, relays, contactors)
- Internal mixer improves lubricant consistency
- Suitable for indoor and outdoor use
- UL/CUL Div. 2 certification (hazardous areas)

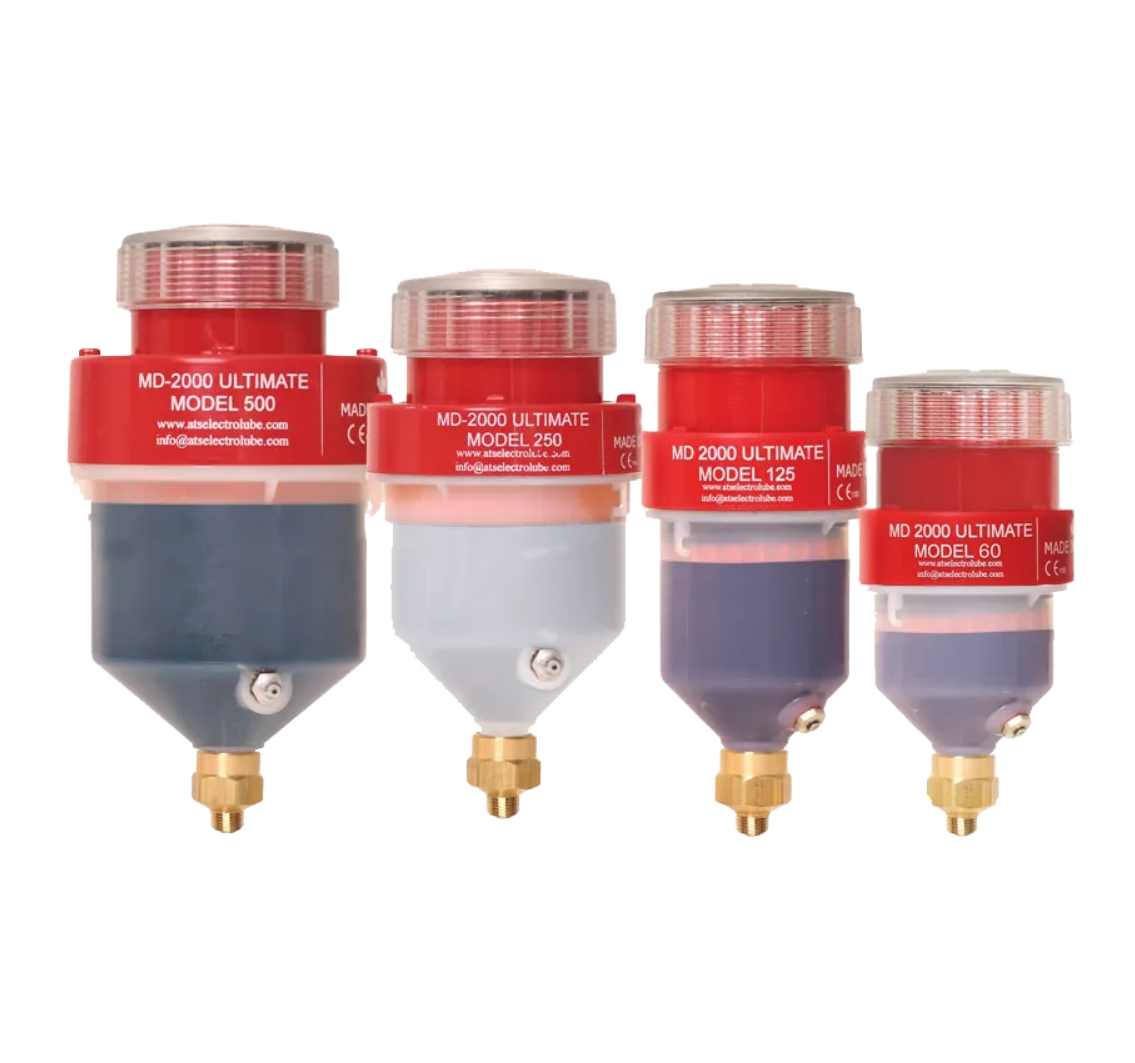

Available in different sizes:
- 60 cc model: 7-1/4″ H × 3-1/2″ Ø
- 125 cc model: 7-1/2″ H × 3-1/8″ Ø
- 250 cc model: 7-1/2″ H × 4″ Ø
- 500 cc model: 8-3/4″ H × 4-3/4″ Ø
Operating Conditions
- Temperature: -20°C to +55°C
(Low-temperature lubricants recommended)
Benefits
- Automatic lubrication for up to 2 years without intervention
- Optimizes lubrication in industrial equipment
- Reduces maintenance costs
- Minimizes failures due to insufficient lubrication
- Allows installation in hazardous or hard-to-reach areas
- Extends equipment service life
- Prevents contamination and lubricant degradation
